Pile Concrete : Calculation ,Formula ,Examples and Types

In the realm of construction and civil engineering, pile concrete plays a crucial role in providing structural stability, load-bearing capacity, and durability to various projects. This article aims to provide a comprehensive guide on pile concrete, covering its construction, application, Formula , calculations ,examples and benefits. Whether you're a construction professional or simply curious about the topic, this article will equip you with valuable insights. So, let's dive in!

What is Pile Concrete?

Pile concrete refers to a construction technique that involves driving or drilling long, slender columns of reinforced concrete into the ground. These columns, known as piles, serve as deep foundations, transferring the loads from the superstructure to the stronger layers of soil or rock beneath. Pile concrete is widely used in various construction projects due to its ability to provide stability and withstand heavy loads.

Types of Pile Concrete

⮚ Driven Piles

Driven piles are a commonly used type of pile concrete. They are installed by forcefully driving precast concrete piles or steel sections into the ground using heavy machinery. This installation method is efficient and suitable for different soil conditions. Driven piles are ideal for projects that require high load-bearing capacity and resistance to lateral forces.

⮚ Bored Piles

Bored piles, also known as drilled piles, are created by drilling cylindrical holes into the ground and then filling them with reinforced concrete. This technique is often used in areas with challenging soil conditions, such as clay or rock formations. Bored piles offer versatility in terms of diameter and depth, making them suitable for a wide range of construction projects.

⮚ Auger Cast Piles

Auger cast piles involve the use of a continuous flight auger to drill into the ground while simultaneously injecting concrete through the hollow center of the auger. This method is commonly used in situations where noise and vibrations must be minimized, such as near existing structures or in urban areas. Auger cast piles are known for their ease of installation and suitability for soft soil conditions.

Construction Process

The construction process of pile concrete involves several stages, ensuring the proper installation and functionality of the piles.

1 Site Preparation

Before commencing the pile installation, the site must be prepared by clearing any obstructions and leveling the ground. This stage also involves conducting soil tests to determine the load-bearing capacity and characteristics of the soil.

2 Pile Installation

Once the site is prepared, the piles are installed according to the chosen method (driven piles, bored piles, or auger cast piles). The piles are driven or drilled into the ground to the desired depth, ensuring they reach the stronger layers capable of supporting the load.

3 Reinforcement Placement

After the piles are installed, steel reinforcement cages are placed inside them to enhance their strength and load-bearing capacity. These cages provide structural integrity and prevent the piles from cracking or bending under heavy loads.

4 Concrete Pouring

Once the reinforcement cages are in place, the piles are ready for concrete pouring. High-quality concrete, mixed with the appropriate water-cement ratio, is poured into the piles to fill the voids and ensure a solid bond with the surrounding soil.

5 Curing and Testing

After the concrete is poured, the piles undergo a curing process to allow the concrete to gain strength and durability over time. Quality control tests, such as pile integrity testing and load testing, are performed to ensure the reliability and safety of the installed piles.

Applications of Pile Concrete

Pile concrete finds extensive applications in various construction projects due to its numerous advantages.

⮞ High-Rise Buildings

In the construction of tall buildings, pile concrete provides the necessary foundation support to withstand the vertical and lateral loads. Pile foundations ensure the structural stability and prevent settlement issues in high-rise structures.

⮞ Bridges and Flyovers

Bridges and flyovers require strong and stable foundations to support heavy traffic loads. Pile concrete offers the necessary strength and load-bearing capacity, making it an ideal choice for constructing bridge piers and abutments.

⮞ Wharves and Docks

Pile concrete is commonly used in the construction of wharves, docks, and marine structures. These structures are subjected to dynamic forces caused by water currents, tides, and vessel impact. Pile foundations provide the stability required to withstand these forces and ensure the longevity of such structures.

⮞ Retaining Walls

Retaining walls are used to restrain soil and prevent slope failures. Pile concrete is often employed to construct deep foundation elements in retaining walls, enabling them to withstand lateral earth pressures effectively.

Understanding Pile Foundations

Pile foundations are structural elements that are driven into the ground to support the weight of a building or structure. They are typically used in situations where the soil conditions are not suitable for shallow foundations. Pile foundations transfer the load from the structure to deeper layers of soil or rock that have sufficient bearing capacity.

Significance of the Pile Concrete Formula

The pile concrete formula is a crucial component in the design and construction of pile foundations. It involves determining the amount of concrete needed to fill the piles, ensuring their structural integrity and load-bearing capacity. By calculating the precise amount of concrete required, engineers can optimize material usage, reduce costs, and ensure the overall stability and durability of the pile foundation.

Factors Affecting Pile Concrete Calculation

Several factors influence the calculation of pile concrete, including the following:

➢ Pile diameter and length
➢ Pile spacing
➢ Soil conditions and bearing capacity
➢ Design load requirements
➢ Safety factors
➢ Concrete strength requirements

The calculation of pile concrete involves several factors that need to be considered. These factors include the length and diameter of the pile, as well as the specific design requirements and structural considerations. By following the steps outlined below, engineers can determine the quantity of concrete needed for a pile foundation:

1. Determining the Volume of the Pile

The first step is to calculate the volume of the pile. This can be done by multiplying the cross-sectional area of the pile by its length. The cross-sectional area can be determined based on the shape of the pile, whether it is circular, square, or rectangular.

2. Accounting for Overbreak and Wastage

In practice, it is important to consider overbreak and wastage factors that may occur during the construction process. These factors account for any additional concrete needed due to uneven surfaces, irregularities, or spillage. It is recommended to add a certain percentage, typically around 5% to 10%, to the calculated volume to accommodate these factors.

3. Converting Volume to Concrete Quantity

Once the total volume of the pile is determined, it needs to be converted into the quantity of concrete required. This conversion is done by multiplying the volume by the density of the concrete. The density of concrete varies depending on the mix design and specific project requirements.

4. Adjusting for Reinforcement and Casing

If the pile requires reinforcement bars or casing, it is important to account for the space they occupy within the pile. The concrete quantity needs to be adjusted accordingly to ensure the correct amount of concrete is placed around the reinforcement or casing.

5. Considering Practical Limitations

Lastly, it is essential to consider practical limitations during construction, such as the availability of concrete delivery methods and equipment. These limitations may influence the volume of concrete that can be placed in a single pour or the overall logistics of the construction process.

Pile Concrete Calculation: Formula

The process of calculating the amount of concrete required for different types of piles follows specific formulas.
Let's explore the calculation procedure for each type of pile:

1. Bored Piles Calculation

To calculate the concrete quantity for bored piles, the formula is as follows:

Concrete Quantity = π * D^2 / 4 * L * N

Where:
- D is the pile diameter
- L is the pile length
- N is the total number of piles

2. Driven Piles Calculation

The formula for calculating the concrete quantity for driven piles is as follows:

Concrete Quantity = A * L * N

Where:
- A is the pile cross-sectional area
- L is the pile length
- N is the total number of piles

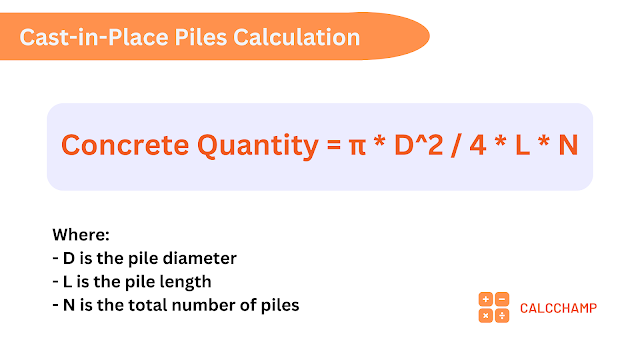

3. Cast-in-Place Piles Calculation

For cast-in-place piles, the formula to calculate the concrete quantity is as follows:

Concrete Quantity = π * D^2 / 4 * L * N

Where:
- D is the pile diameter
- L is the pile length
- N is the total number of piles

Example Pile concrete Calculations

Let's consider some examples to illustrate the pile concrete calculation process for different types of piles.

1. Example Calculation for Bored Piles

Suppose we have a construction project that requires 20 bored piles with a diameter of 1 meter and a length of 15 meters. Using the formula, we can calculate the concrete quantity as follows:

Concrete Quantity = π * 1^2 / 4 * 15 * 20 = 235.62 cubic meters

Therefore, we would need approximately 235.62 cubic meters of concrete for this particular bored pile configuration.

2. Example Calculation for Driven Piles

Consider a scenario where 30 driven piles with a cross-sectional area of 0.5 square meters and a length of 12 meters are required. Applying the formula, we can determine the concrete quantity as follows:

Concrete Quantity = 0.5 * 12 * 30 = 180 cubic meters

Thus, approximately 180 cubic meters of concrete would be needed for this configuration of driven piles.

3. Example Calculation for Cast-in-Place Piles

Suppose we have a project with 15 cast-in-place piles having a diameter of 0.8 meters and a length of 10 meters each. Using the formula, we can calculate the concrete quantity as follows:

Concrete Quantity = π * 0.8^2 / 4 * 10 * 15 = 150.796 cubic meters

Hence, approximately 150.796 cubic meters of concrete would be required for this particular cast-in-place pile arrangement.

Circular Pile Concrete Quantity Formula

To calculate the concrete quantity required for a circular pile, you can use the following formula:

Concrete Quantity = π * (D^2/4) * H

Where:

D represents the diameter of the pile
H indicates the height or length of the pile
This formula helps estimate the volume of the concrete needed to fill the cylindrical space within the circular pile.

 Example: Let's go through an example to illustrate the circular pile concrete quantity calculation.

Suppose we have a circular pile with a diameter of 1 meter (D = 1m) and a height of 10 meters (H = 10m). Using the formula mentioned earlier, we can calculate the concrete quantity:

Concrete Quantity = π * (1^2/4) * 10
Concrete Quantity = 3.14 * 0.25 * 10
Concrete Quantity = 7.85 cubic meters

In this example, the circular pile would require approximately 7.85 cubic meters of concrete.

Benefits of Pile Concrete

The utilization of pile concrete in construction projects offers several advantages.

➤  Enhanced Load-Bearing Capacity

Pile concrete foundations distribute the loads from the superstructure over a larger area, reducing the risk of settlement and improving the load-bearing capacity of the structure.

➤  Increased Structural Stability

By reaching deeper, more stable layers of soil or rock, pile concrete enhances the structural stability of buildings and infrastructure, minimizing the risks of differential settlements and structural failures.

➤  Resistance to Soil Movements

Pile concrete provides a robust solution to counteract soil movements, such as subsidence, expansive soils, or seismic activities. The deep foundation system ensures the structure remains stable and intact.

➤  Cost-Effectiveness

Although pile concrete construction may require an initial investment, its long-term cost-effectiveness is evident in the increased lifespan and reduced maintenance requirements of the structures built with this technique.

➤  Eco-Friendly Construction Option

Pile concrete minimizes the disturbance to the surrounding environment by reducing the excavation and material requirements compared to traditional shallow foundations. This environmentally friendly approach contributes to sustainable construction practices.



FAQs

Q: How can I measure the diameter and height of a circular pile accurately?

A: Use appropriate measuring tools, such as a tape measure or laser distance meter, to measure the diameter and height of the circular pile. Take multiple measurements to minimize errors.

Q: Are there any specific codes or regulations for circular pile construction?

A: Yes, different regions may have specific building codes and guidelines for pile construction. It is important to familiarize yourself with local regulations to ensure compliance and structural safety.

Q: Can I use the circular pile concrete quantity formula for irregular-shaped piles?

A: The circular pile concrete quantity formula is specifically designed for cylindrical piles. For irregular-shaped piles, different formulas or methods may be required to calculate the concrete quantity accurately.

Q: What is the recommended percentage for accounting overbreak and wastage?

A: It is generally recommended to add around 5% to 10% to the calculated volume to account for overbreak and wastage factors during the construction of pile foundations.

Q: How does the density of concrete affect the quantity calculation?

A: The density of concrete is multiplied by the volume of the pile to determine the quantity of concrete required. The specific density value depends on the mix design and project specifications.

Q: When is reinforcement or casing required for pile foundations?

A: Reinforcement or casing is typically required for piles subjected to high loads or when encountering challenging ground conditions. These elements enhance the strength and stability of the pile.

Q: Are there any limitations to consider during the construction process?

A: Yes, practical limitations such as concrete delivery methods, equipment availability, and logistical constraints should be taken into account to ensure a smooth and efficient construction process.

Q: Are there any limitations to the length of pile concrete?

A: The length of pile concrete can vary depending on the project requirements and soil conditions. However, it's important to consider factors such as lateral stability, load-bearing capacity, and constructability when determining the optimal length of pile concrete for a specific project.

Q: Can pile concrete be used in seismic regions?

A: Yes, pile concrete is commonly used in seismic regions to provide structural stability and resistance against ground movements during earthquakes. The deep foundation system of pile concrete helps in mitigating the effects of seismic activities.

Q: Is pile concrete a sustainable construction option?

A: Yes, pile concrete is considered a sustainable construction option. Its eco-friendly nature lies in its ability to minimize excavation, reduce material requirements, and provide long-lasting structures that require less maintenance over time.
